Turismo Veloce 800 Rosso

Prices start from
£13,870.00

Return to Model Categories

Model Description

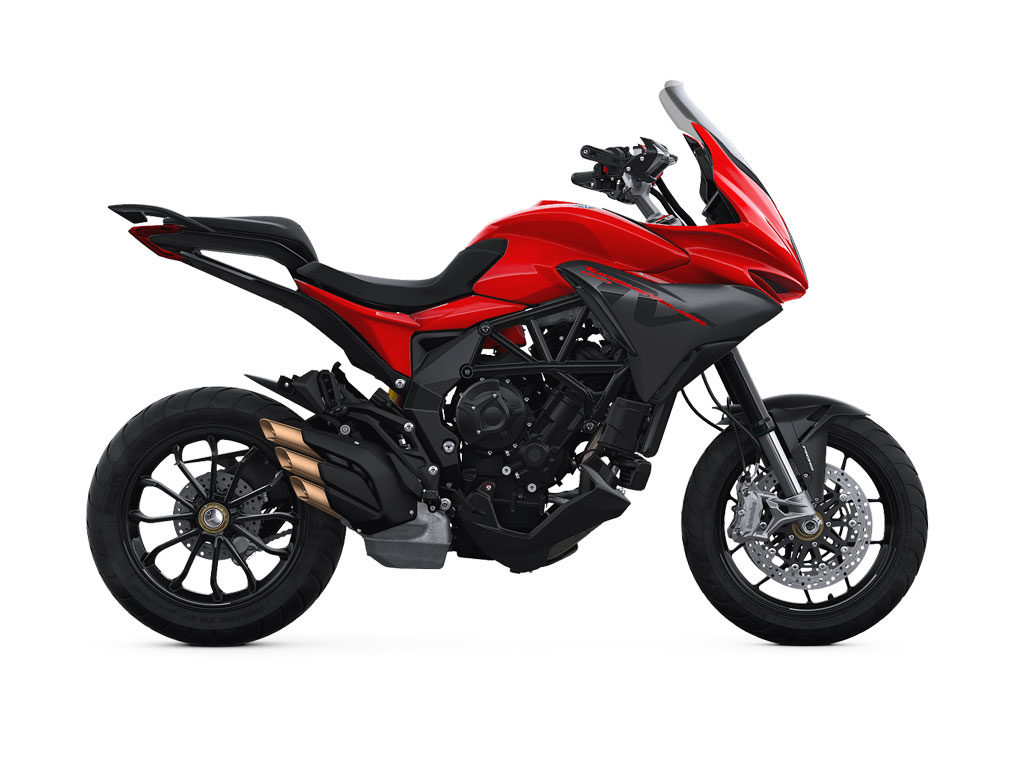

DESIGN. AN INSTANT ICON

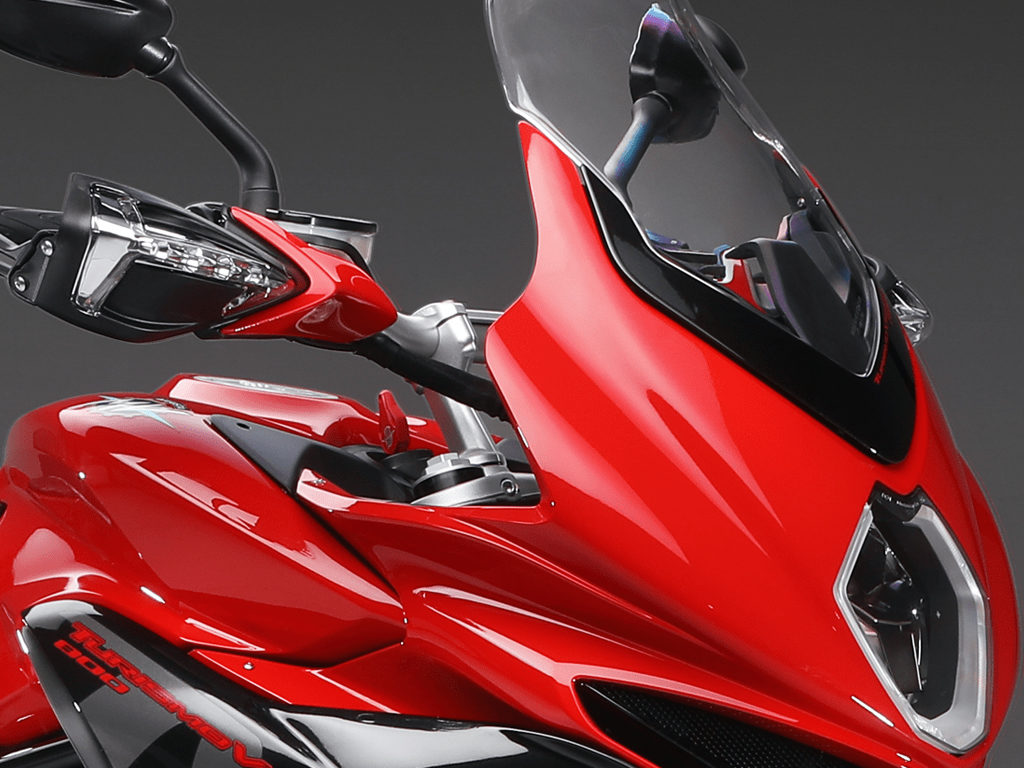

The characterising element of the Rosso range is its exclusive colour, with a red base underneath the superstructures enhancing the design, alternated with an elegant black finish. Differences with the standard setup are minimal, like the surface milling on the wheel’s spoke profiles.

FEEL THE POWER OF SOUND

The in-line three-cylinder engine deriving from the F3 800 represents an absolute benchmark for its performance, elasticity and compact dimensions. With 110 hp and 80 Nm torque, riding pleasure is guaranteed in all conditions.

Model Specification


  • Engine

    Type

    Three cylinder, 4 stroke, 12 valve

    Engine

    Timing

    “D.O.H.C” with mechanical chain tensioner

    Displacement (cc)

    798 cm3 (48.7 cu. in.)

    Compression Ratio

    12.3:1

    Starting

    Electric

    Max Power

    81 kW (110 hp) at 10.150 r.p.m.

    Max Torque

    80 Nm a 7.100 giri/min

    Engine Management

    Integrated ignition

  • Dimensions

    Bore x Stroke

    79 mm x 54.3 mm (3.1 in. x 2.1 in.)

    Wheelbase

    1445 mm (56.89 in.)

    Length

    2125 mm (83.66 in.)

    Width

    910 mm (35.83 in.)

    SeatHeight

    850 mm (33.46 in.)

    Ground Clearance

    140 mm (5.51 in.)

    Trail

    108 mm (4.25 in.)

    Dry Weight

    191 kg (421.1 lbs.

  • Performance

    Cooling

    Cooling with separated liquid and oil radiators

    Clutch

    Hydraulic, wet, multi-disc with slipper clutch

    Max Speed

    230 km/h (143 mph)

  • Transmission

    Gearbox

    Primary Drive

    22/41

  • Frame

    Tank Capacity

    21.5 l (5.68 U.S. gal.)

    Frame Type

    ALS Steel tubular trellis (MAG welded)

    Rear Swing Arm

    Aluminium alloy

  • Suspension

    Front Suspension

    Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment

    Rear Suspension

    Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment

  • Brakes

    Front Brakes

    Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange

    Rear Brakes

    Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.

  • Wheels

    Front Wheels

    Aluminium alloy 3.50” x 17”

    Rear Wheels

    Aluminium alloy 6.00” x 17”

    Front Tyres

    120/70 - ZR 17 M/C (58 W)

    Rear Tyres

    190/55 - ZR 17 M/C (75 W)
