Model Description


DESIGN – BLAST FROM THE PAST

Obsessive attention to detail finds in the Superveloce 800 a defining example. Nothing escaped the designer’s eye. Superveloce represents the perfect balance between modern forms and references to the past. The design could not ignore the spirit of a motorcycle inspired by the brand’s racing tradition, and every element is stripped down to its essential function and committed to performance.

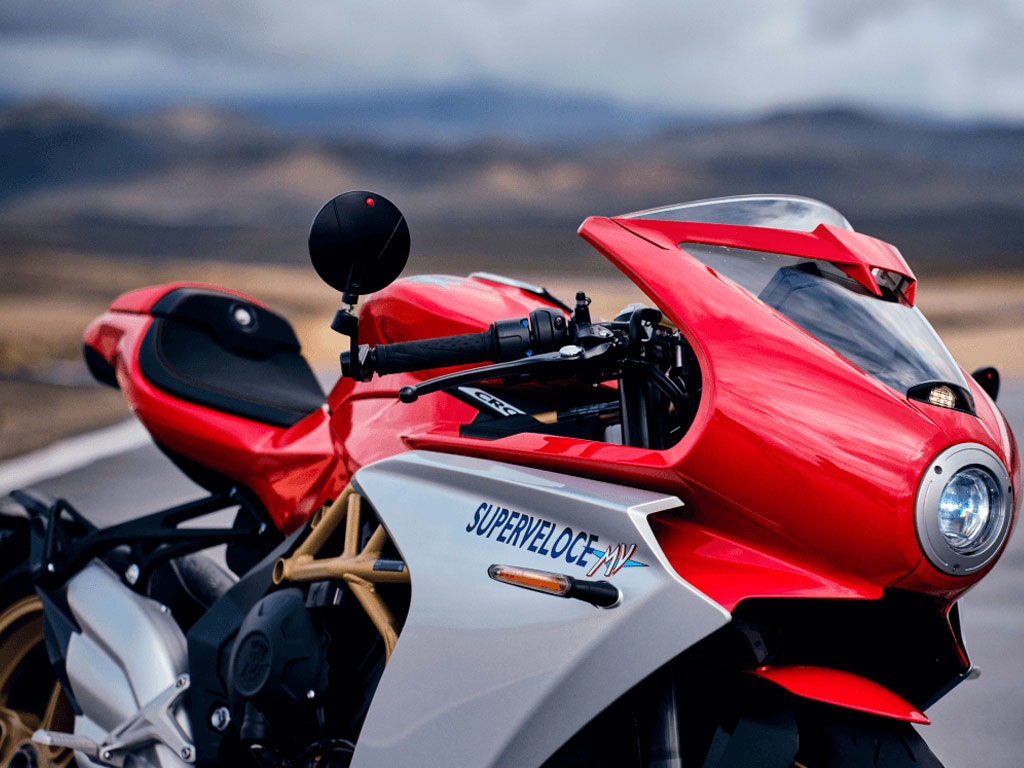

DETAILS – VINTAGE ACCORDING TO MV AGUSTA

If you can tell a bike from its gaze, that of the MV Agusta Superveloce is truly unique.The headlight unit is characterised by a single elliptical, full LED double-function element. The LED position light is integrated in the dashboard support. The rear light cluster features the same technology and was specifically designed for the Superveloce 800.

PERFORMANCE – NO LIMITS

Timeless forms and modern superbike performance. The attractiveness of the Superveloce go far beyond simple aesthetics. A motorcycle seduces with performance, acceleration and speed.

Model Specification


  • Engine

    Type

    Three cylinder, 4 stroke, 12 valve

    Engine

    Timing

    “D.O.H.C” with mechanical chain tensioner

    Displacement (cc)

    798 cm3 (48.7 cu. in.)

    Compression Ratio

    13.3:1

    Starting

    Electric

    Max Power

    108 kW (148 hp) at 13.000 r.p.m.

    Max Torque

    88 Nm (8.97 kgm) at 10.600 r.p.m.

    Engine Management

    Integrated ignition

  • Dimensions

    Bore x Stroke

    79 mm x 54.3 mm (3.1 in. x 2.1 in.)

    Wheelbase

    1380 mm (54.33 in.)

    Length

    2030 mm (79.92 in.)

    Width

    730 mm (28.74 in.)

    SeatHeight

    830 mm (32.68 in.)

    Ground Clearance

    120 mm (4.72 in.)

    Trail

    99 mm (3.89 in.)

    Dry Weight

    173 kg (381.4 lbs.)

  • Performance

    Cooling

    Cooling with separated liquid and oil radiators

    Clutch

    Wet, multi-disc slipper clutch

    Max Speed

    240.0 km/h (149.1 mph)

  • Transmission

    Gearbox

    Primary Drive

    22/41

  • Frame

    Tank Capacity

    16,5 l (4.36 U.S. gal.)

    Frame Type

    ALS Steel tubular trellis

    Rear Swing Arm

    Aluminium alloy

  • Suspension

    Front Suspension

    Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment

    Rear Suspension

    Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment

  • Brakes

    Front Brakes

    Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange

    Rear Brakes

    Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.

  • Wheels

    Front Wheels

    Aluminium alloy 3.50 ” x 17 ”

    Rear Wheels

    Aluminium alloy 5.50 ” x 17 ”

    Front Tyres

    120/70 - ZR 17 M/C (58 W) Pirelli Diablo Rosso Corsa II

    Rear Tyres

    180/55 - ZR 17 M/C (73 W) Pirelli Diablo Rosso Corsa II
