Model Description


THE MEANING OF “REPARTO CORSE”


Getting constant feedback from riders, listening to and interpreting their sensations in order to perfect every component of the bike.

A NATURAL RACER

350 units, not one more, all individually identified by a certificate guaranteeing their authenticity. They all come with their own kit to turn the road F3 RC into the ultimate machine for track days. The titanium exhaust is supplied by SC Project.

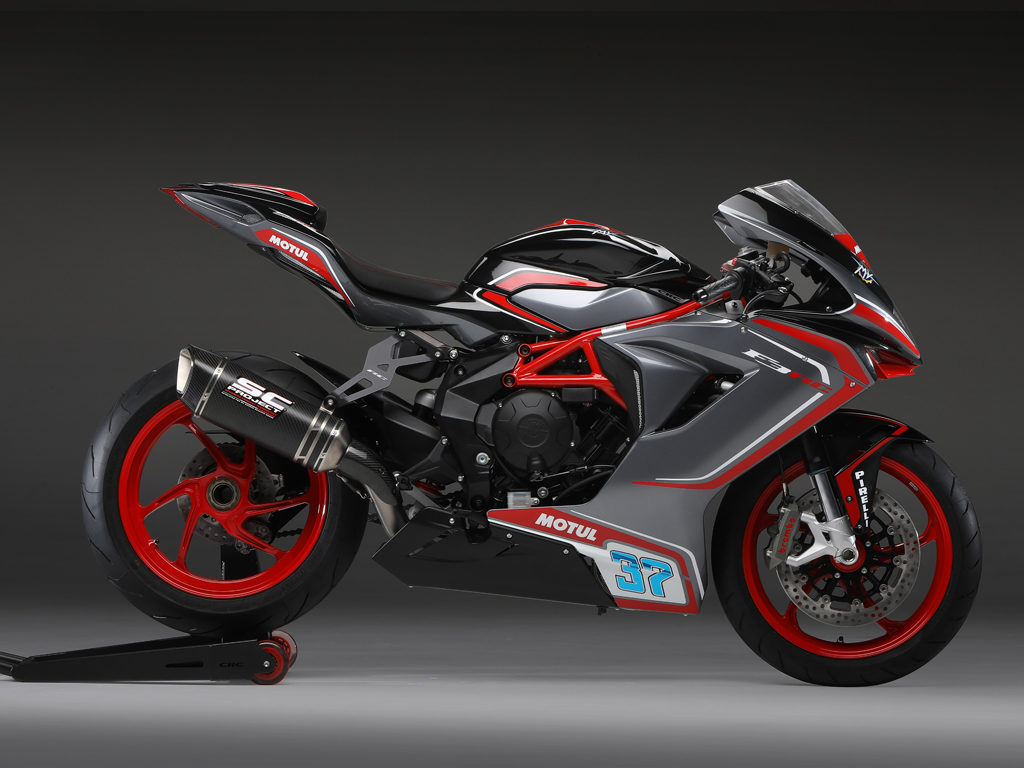

RACE REPLICA

The graphics and the colour schemes are the same as the ones sported by MV Agusta’s pilots in the world’s top competitions.

TRACTION AND AGILITY, WITH MORE POWER

You can almost hear the echo of the legendary Supersport World Championship tracks in its three-cylinder roar.

Model Specification


  • Engine

    Type

    Three cylinder, 4 stroke, 12 valve

    Engine

    Timing

    “D.O.H.C” with mechanical chain tensioner

    Displacement (cc)

    798 cm3 (48.7 cu. in.)

    Compression Ratio

    13.3:1

    Starting

    Electric

    Max Power

    108 kW (148 hp) at 13.000 r.p.m. 112.5 kW (153 hp) at 13.250 r.p.m.**

    Max Torque

    88 Nm (8.97 kgm) at 10.600 r.p.m.

    Engine Management

    Integrated ignition

  • Dimensions

    Bore x Stroke

    79 mm x 54.3 mm (3.1 in. x 2.1 in.)

    Wheelbase

    1380 mm (54.33 in.)

    Length

    2030 mm (79.92 in.)

    Width

    730 mm (28.74 in.)

    SeatHeight

    830 mm (32.68 in.)

    Ground Clearance

    120 mm (4.72 in.)

    Trail

    99 mm (3.89 in.)

    Dry Weight

    173 kg (381.4 lbs.) - 165 kg (363.8 lbs.)**

  • Performance

    Cooling

    Cooling with separated liquid and oil radiators

    Clutch

    Wet, multi-disc slipper clutch

    Max Speed

    240.0 km/h (149.1 mph)

  • Transmission

    Gearbox

    Primary Drive

    22/41

  • Frame

    Tank Capacity

    16,5 l (4.36 U.S. gal.)

    Frame Type

    ALS Steel tubular trellis

    Rear Swing Arm

    Aluminium alloy

  • Suspension

    Front Suspension

    Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment

    Rear Suspension

    Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment

  • Brakes

    Front Brakes

    Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange

    Rear Brakes

    Single steel disc with Ø 220 mm (Ø 8.66 in.) dia

  • Wheels

    Front Wheels

    Aluminium alloy 3.50 ” x 17 ”

    Rear Wheels

    Aluminium alloy 5.50 ” x 17 ”

    Front Tyres

    120/70 - ZR 17 M/C (58 W)

    Rear Tyres

    180/55 - ZR 17 M/C (73 W)
