Model Description


FORMED BY SPEED

Every detail of the F3 675 is designed with a sole objective: making it faster. Form follows function, say the masters of design, and all with the unmistakable style of MV.

A SUPERFAST WORK OF ART

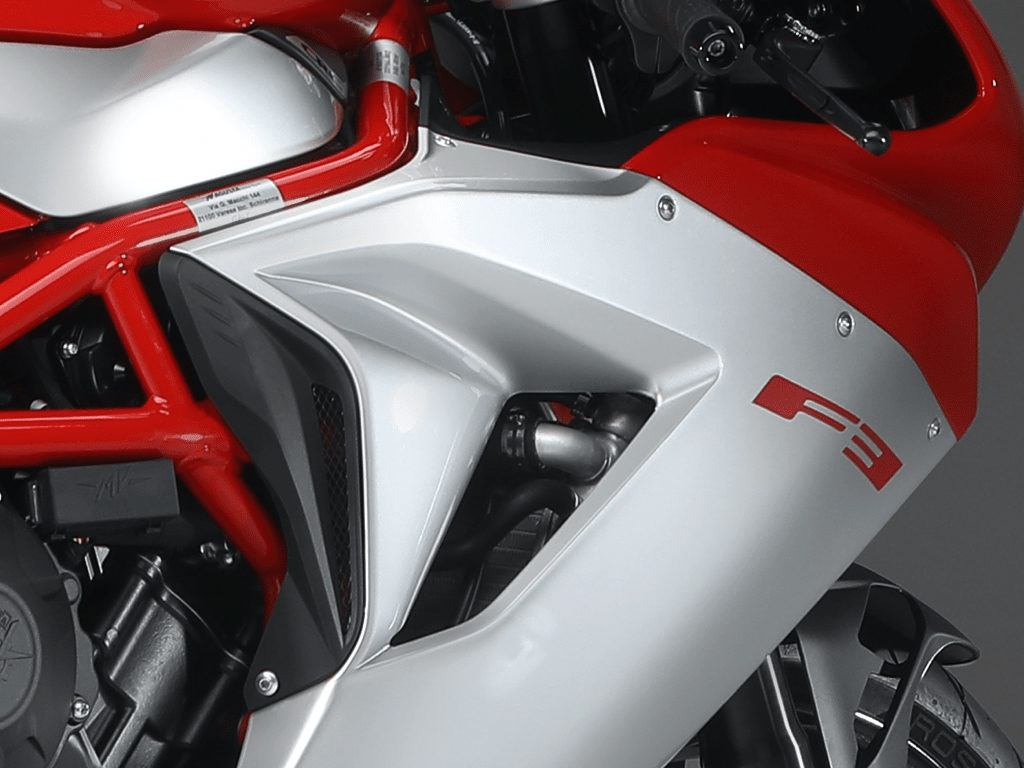

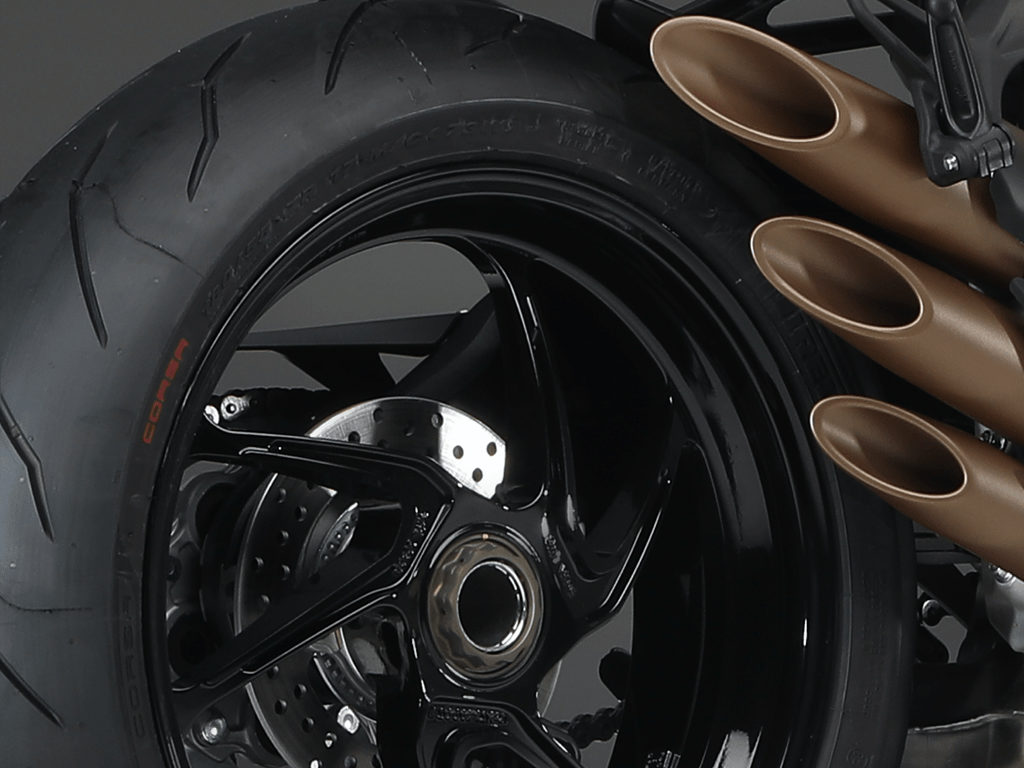

The three-exit exhaust, the distinctive, aggressive-looking headlight unit and the single-sided swingarm, so beautiful it looks like a sculpture: every detail of the F3 675 tells the story of a work of art crafted by MV.

TRACTION AND AGILITY

A wheelbase of 1,380 mm – a reference for the category – and a weight of just 173 kg: the uniqueness of the F3 675 lies not only in the figures but also in its concept.

COMPACT AND POWERFUL LIKE NO OTHER

Thanks to the particular distribution of its internal components, the engine of the F3 675 is like no other in this category. With a 79 mm bore and a 45.9 mm stroke this three-cylinder engine can reach extremely high revs. High-tech and innovative, it delivers 128 hp at 14.500 rpm with a 71 Nm torque at 10.600 rpm.

Model Specification


  • Engine

    Type

    Three cylinder, 4 stroke, 12 valve

    Engine

    Timing

    “D.O.H.C”with mechanical chain tensioner

    Displacement (cc)

    675 cm3 (41.2 cu. in.)

    Compression Ratio

    13:1

    Starting

    Electric

    Max Power

    94 kW (128 hp) at 14.500 r.p.m.

    Max Torque

    70,5 Nm (7.19 kgm) at 10900 r.p.m.

    Engine Management

    Integrated ignition

  • Dimensions

    Bore x Stroke

    79 mm x 45.9 mm (3.1 in. x 1.8 in.)

    Wheelbase

    1380 mm (54.33 in.)

    Length

    2030 mm (79.92 in.)

    Width

    730 mm (28.74 in.)

    SeatHeight

    830 mm (32.68 in.)

    Ground Clearance

    120 mm (4.72 in.)

    Trail

    99 mm (3.89 in.)

    Dry Weight

    173 kg (381.4 lbs.)

  • Performance

    Cooling

    Cooling with separated liquid and oil radiators

    Clutch

    Wet, multi-disc slipper clutch

    Max Speed

    251.0 km/h (156 mph)

  • Transmission

    Gearbox

    Primary Drive

    22/41

  • Frame

    Tank Capacity

    16,5 l (4.36 U.S. gal.)

    Frame Type

    ALS Steel tubular trellis

    Rear Swing Arm

    Aluminium alloy

  • Suspension

    Front Suspension

    Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload e

    Rear Suspension

    Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment

  • Brakes

    Front Brakes

    Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange

    Rear Brakes

    Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.

  • Wheels

    Front Wheels

    Aluminium alloy 3.50 ” x 17 ”

    Rear Wheels

    Aluminium alloy 5.50 ” x 17 ”

    Front Tyres

    120/70 - ZR 17 M/C (58 W)

    Rear Tyres

    180/55 - ZR 17 M/C (73 W)
