Model Description


DESIGN. INSTANT CLASSIC

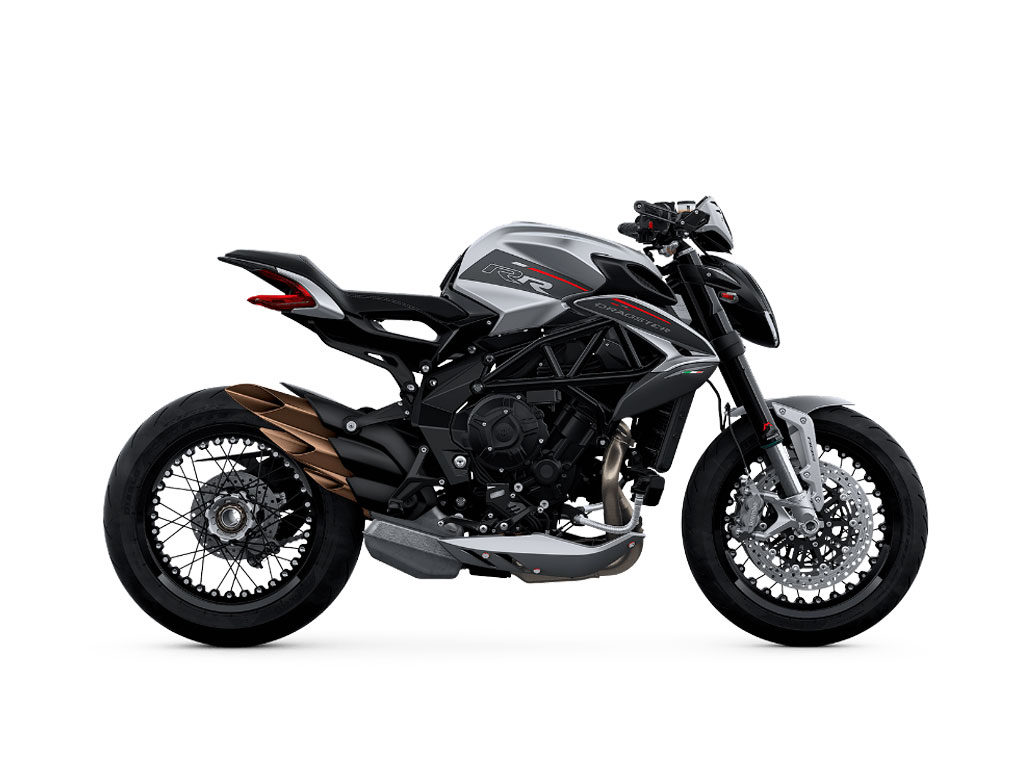

Inimitable, with a unique personality. The curves of the fuel tank and headlight, the bobbed tail and the elegant spoke wheels superbly frame the three-cylinder engine at the heart of the Dragster. Ready for action, bursting with exuberance and power.

FEEL THE POWER OF SOUND

Always ready to react to the slightest pressure on the throttle, the 140 HP and 87 Nm three-cylinder engine on the Dragster RR SCS can count on electronic management that’s constantly evolving. The extremely sensitive response is combined with an advanced Smart Clutch System to allow this sophisticated engine to reach its full potential.

Model Specification


  • Engine

    Type

    Three cylinder, 4 stroke, 12 valve

    Engine

    Timing

    “D.O.H.C” with mechanical chain tensioner

    Displacement (cc)

    798 cm3 (48.68 cu. in.)

    Compression Ratio

    13.3:1

    Starting

    Electric

    Max Power

    103 kW (140 hp) at 12.300 r.p.m.

    Max Torque

    87 Nm (8.87 kgm) at 10.100 r.p.m

    Engine Management

    Integrated ignition

  • Dimensions

    Bore x Stroke

    79 mm x 54.3 mm (3.1 in. x 2.1 in.)

    Wheelbase

    1400 mm (55.12 in.)

    Length

    2035 mm (80.12 in.)

    Width

    935 mm (36.81 in.)

    SeatHeight

    845 mm (33.27 in.)

    Ground Clearance

    135 mm (5.31 in.)

    Trail

    103.5 mm (4.07 in.)

    Dry Weight

    175 kg (385.8 lbs.)

  • Performance

    Cooling

    Cooling with separeted liquid and oil radiators.

    Clutch

    S.C.S. 2.0 (Smart Clutch System) Radius CX automatic clutch with hydraulic clutch actuation, wet multi-disc

    Max Speed

    244.0 km/h (151.6 mph)

  • Transmission

    Gearbox

    Primary Drive

    22/41

  • Frame

    Tank Capacity

    16.5 l (4.36 U.S. gal.)

    Frame Type

    ALS Steel tubular trellis

    Rear Swing Arm

    Aluminium alloy

  • Suspension

    Front Suspension

    Marzocchi “UPSIDE DOWN” telescopic hydraulic fork in DLC treated aluminium, with anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment

    Rear Suspension

    Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment

  • Brakes

    Front Brakes

    Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange

    Rear Brakes

    Single steel disc with Ø 220 mm (Ø 8.66 in.) dia

  • Wheels

    Front Wheels

    With aluminium alloy spokes 3.50” x 17”

    Rear Wheels

    With aluminium alloy spokes 6.00” x 17”

    Front Tyres

    120/70 - ZR 17 M/C (58 W)

    Rear Tyres

    200/50 - ZR 17 M/C (75 W)
