Model Description


MV STYLE

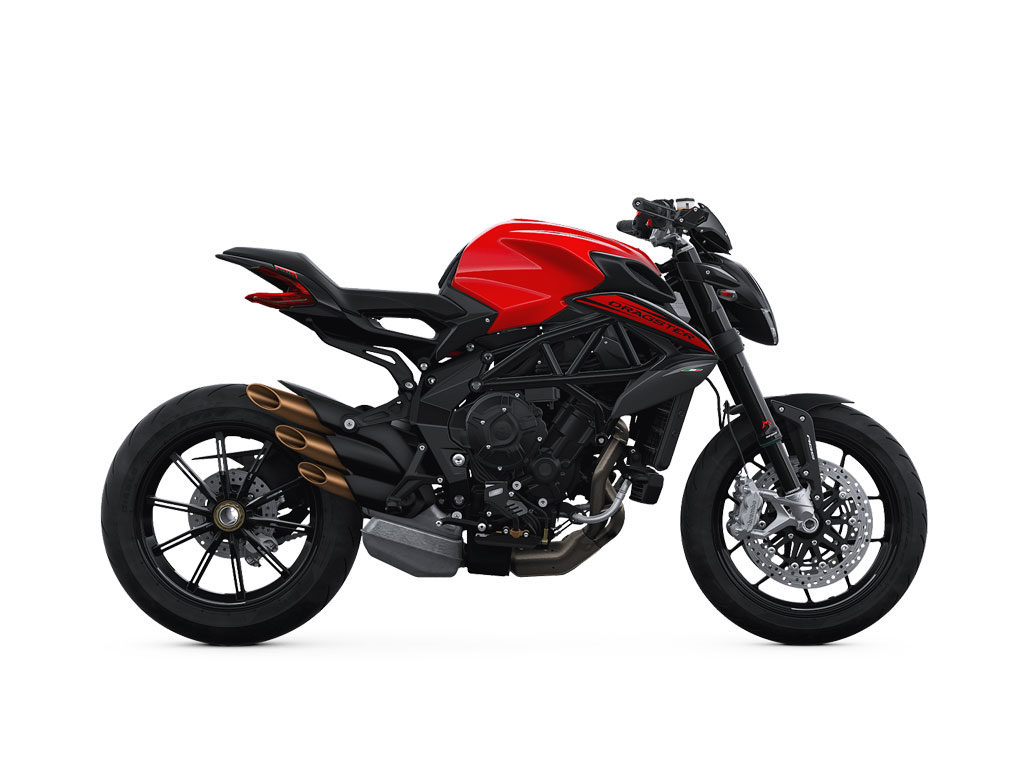

Three distinct models make up the Rosso range: Dragster 800, Brutale 800 and turismo Veloce 800. Each and every one of them is an icon of style, design and performance. No entry-level range has ever been so appealing and high-quality.

EXCLUSIVE UNDER EVERY ASPECT

The characterising element of the Rosso range is its exclusive colour, with a red base underneath the superstructures enhancing the design, alternated with an elegant black finish. Differences with the standard setup are minimal, like the surface milling on the wheel’s spoke profiles.

NO COMPROMISE

As of today you can get onto an MV without sacrificing any of the style and technical elements that made “Meccanica Verghera” branded motorcycles so famous.

Model Specification


  • Engine

    Type

    Three cylinder, 4 stroke, 12 valve

    Engine

    Timing

    “D.O.H.C” with mechanical chain tensioner

    Displacement (cc)

    798 cm3 (48.68 cu. in.)

    Compression Ratio

    12.3:1

    Starting

    Electric

    Max Power

    81 kW (110 hp) at 11.500 r.p.m.

    Max Torque

    83 Nm (8.46 kgm) at 7.600 r.p.m.

    Engine Management

    Integrated ignition

  • Dimensions

    Bore x Stroke

    79 mm x 54.3 mm (3.1 in. x 2.1 in.)

    Wheelbase

    1400 mm (55,12 in.)

    Length

    2035 mm (80.12 in.)

    Width

    935 mm (36.81 in.)

    SeatHeight

    845 mm (33.27in.)

    Ground Clearance

    135 mm (5.31 in.)

    Trail

    103,5 mm (4.07 in.)

    Dry Weight

    168 kg (370.38 lbs.)

  • Performance

    Cooling

    Cooling with separeted liquid and oil radiators

    Clutch

    Multi-disk wet clutch with hydraulic actuation and back torque limiting device

    Max Speed

    237.0 km/h (147.2 mph)

  • Transmission

    Gearbox

    Primary Drive

    22/41

  • Frame

    Tank Capacity

    16.5 l (4.36 U.S. gal.)

    Frame Type

    ALS Steel tubular trellis

    Rear Swing Arm

    Aluminium alloy

  • Suspension

    Front Suspension

    Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment

    Rear Suspension

    Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment

  • Brakes

    Front Brakes

    Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange

    Rear Brakes

    Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.

  • Wheels

    Front Wheels

    Aluminium alloy 3.50 ” x 17 ”

    Rear Wheels

    Aluminium alloy 6.00 ” x 17 ”

    Front Tyres

    120/70 - ZR 17 M/C (58 W)

    Rear Tyres

    200/55 - ZR 17 M/C (75 W)
