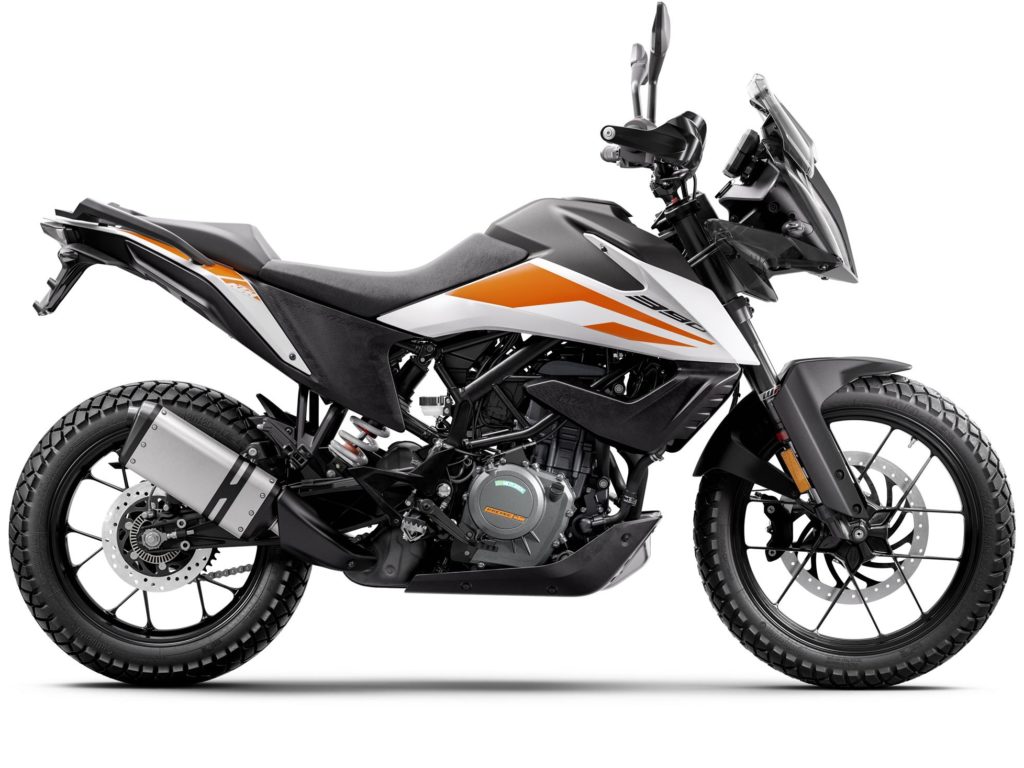

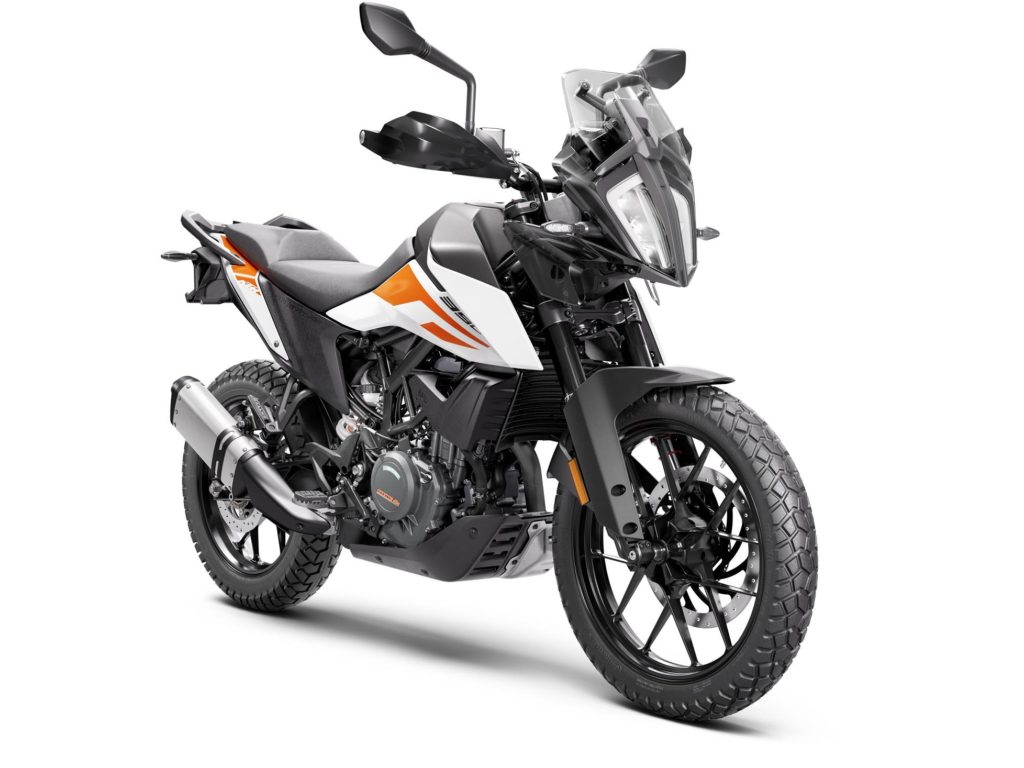

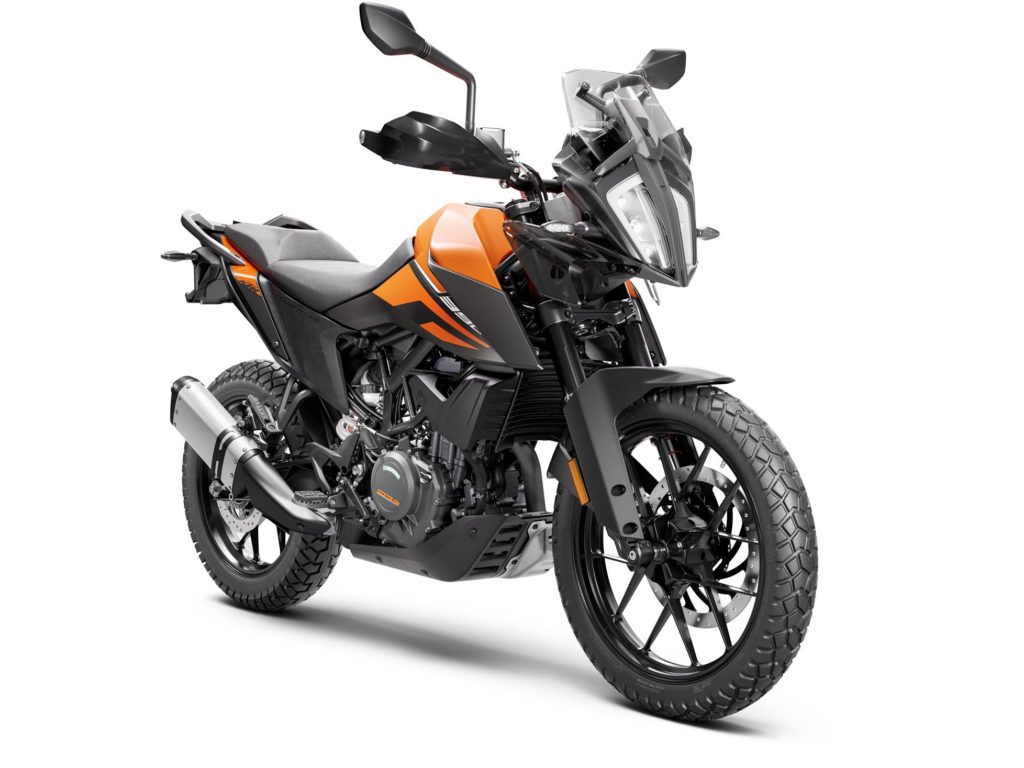

Model Description


Satisfy your restless spirit with the new KTM 390 ADVENTURE. This compact single-cylinder travel-enduro machine has a sporty design attitude, with the comprehensive equipment and proven performance credentials of the KTM ADVENTURE range. Its versatile ergonomics, smooth power delivery and innovative technology all come together in a comfortable, lightweight package built for those wanting to fit more adventure into their daily lives.

Each adventure is a true test of man and machine. With a proven track record in the Dakar rally, the toughest adventure of them all, KTM has gained the know-how to produce reliable powerplants that deliver top performance across a wide range of terrain. Whether you intend on pushing further, harder or more often, the compact and lightweight engines powering the KTM ADVENTURE range are built to take you to new extremes, and beyond.

The KTM 390 ADVENTURE is a versatile travel motorcycle, well balanced and purposeful. It has super agile and sporty handling on the street and as well as the offroad capability to take on rougher dirt roads. Even with its large volume fuel tank, the design of the bodywork and the seat allow excellent ergonomics, freedom of movement and comfort. It offers a low seat height, while still providing sufficient ground clearance. The rugged, minimalist bodywork defines the identity of the bike and underlines its hardcore roots.

The KTM 390 ADVENTURE has several optional features to enhance rider comfort, including a higher or lower seat option and adjustable handlebar height. With lessons learned from KTM’s Dakar Rally success, its performance-oriented, long-distance ergonomics were designed with comfort and control in mind.

The bodywork on the KTM 390 ADVENTURE is not only shaped to impress, but also to give you high-level performance and comfort on the ride. The sporty graphics highlight the bike’s rally DNA and send a clear message that it is ready for more adventurous journeys.

The KTM 390 ADVENTURE provides you with  all the information you need and allows you to ride with optimal control. Even when you’re pushing to extend your boundaries, KTM’s combination of the most advanced software and electronics allows you to maximize the thrill factor out on any ride. Its racy looks and performance are matched only by the ease-of-use that modern electronics offer. All you have to do is focus on the horizon – and chase it down.

The KTM 390 ADVENTURE is ready to rumble straight off the showroom floor, but when you need to set it up to suit your individual needs KTM PowerParts boast a wide range of accessories to enhance your riding experience. All KTM PowerParts are developed specifically for their chosen machine, guaranteeing that KTM riders only get parts that perfectly complement their ride and provide that important “factory fit” straight from the dealer.

Model Specification


  • Engine

    Engine Type

    1-cylinder, 4-stroke

    Displacement

    373 cc

    Starter

    Electric starter

    Transmission

    6-speed

    Engine Lubrication

    Wet sump

    Cooling

    Liquid cooled

    Clutch

    PASC slipper clutch, mechanically operated

    Ignition

    Bosch EMS with RBW

    ABS System

    Bosch 9.1 MP Two channel ABS with Offroad ABS mode

    Bore x Stroke

    Compression Ratio

    Final Drive

  • Dimensions

    Bore

    89 mm

    Stroke

    60 mm

    Wheelbase

    Ground Clearance (unloaded)

    200 mm

    Seat Height

    855 mm

    Weight (No Fuel)

    158 kg

  • Performance

    Performance

    32 kW (44 hp)

    Primary Gear Ratio

    Secondary Gear Ratio

    Brake System Front

    Four-piston radially mounted brake caliper 320 mm

    Brake System Rear

    Single piston, floating caliper, brake disc 230 mm

  • Frame

    Frame

    Steel trellis frame, powder coated

    Chain

    520 X-Ring

    Steering Head Angle

    63.5 degrees

    Tank Capacity

    14.5 litres

    Suspension Travel Front/Rear

    Brakes: Front/Rear

    Rims: Front/Rear

    Tank Capactiy

    Ground Clearence (Unloaded)

  • Suspension

    Front Suspension

    WP USD 43mm

    Rear Suspension

    WP Monoshock

    Suspension Travel Front

    170 mm

    Suspension Travel Rear

    177 mm
