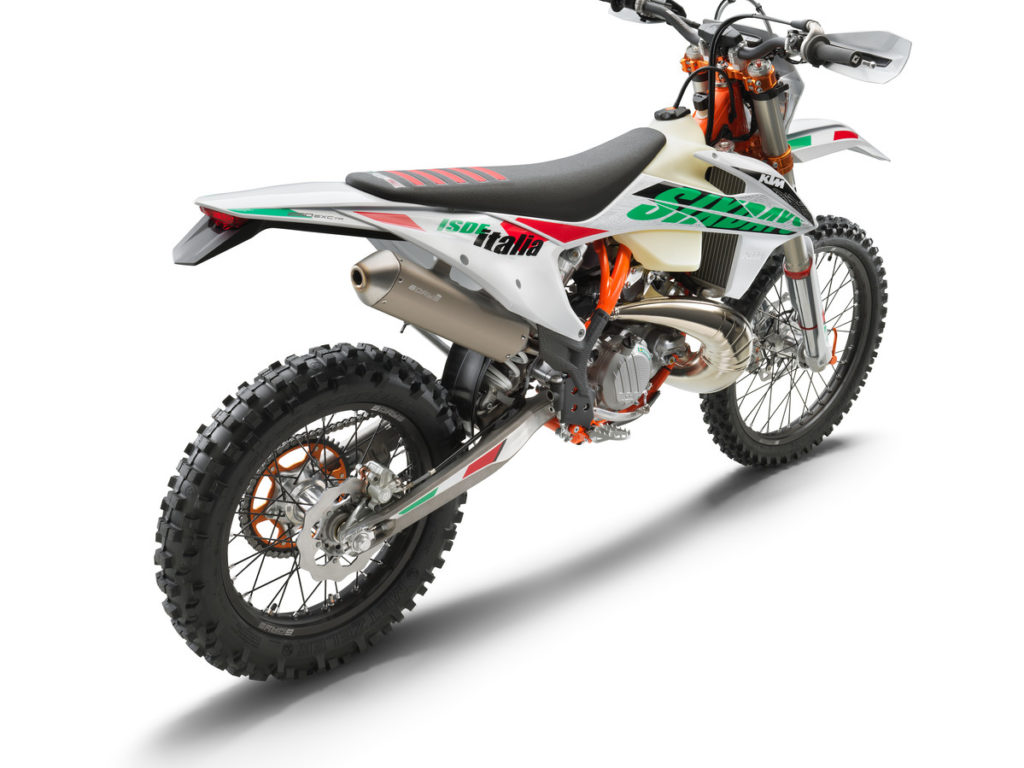

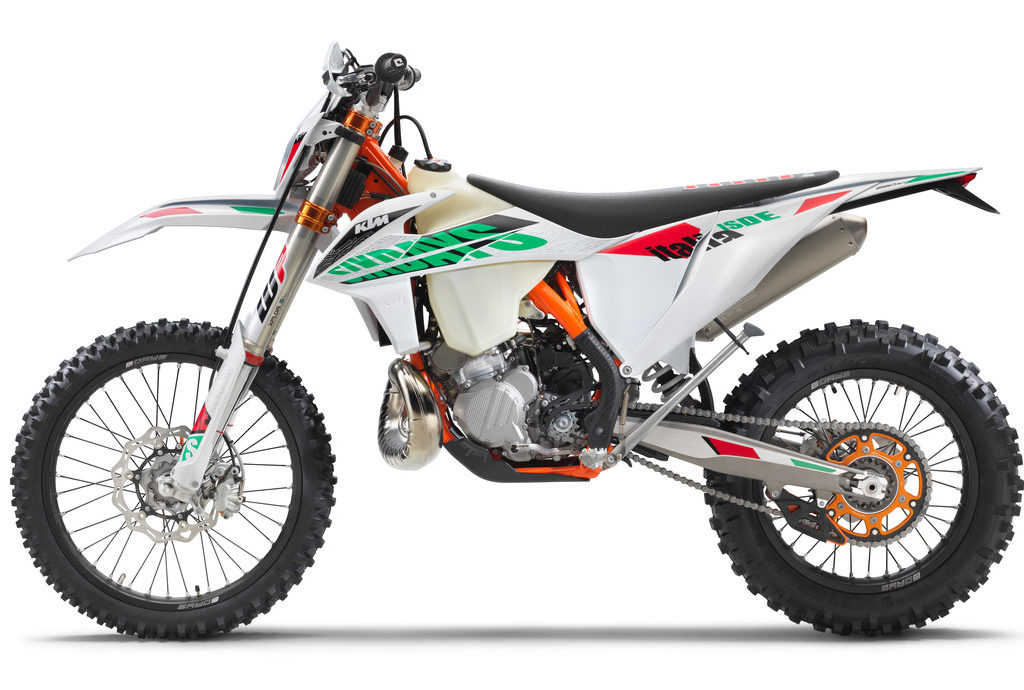

No other brand stands up to the success of KTM when it comes to enduro, and this is clearly evident in the biggest competition on the calendar, the ‘International Six Days Enduro’ (ISDE). From its humble beginnings, the ISDE has turned into the team world championship of the Enduro scene. This Enduro marathon demands as much from the bikes as it does from the riders, and every year, more than half of them show up on Orange. The 2021 KTM SIX DAYS models pay the ultimate tribute to the event that was originally set to take place in Italy in 2020 and had to be rescheduled for 2021. No chain is stronger than its weakest link, so no compromise can be made for those intent on crossing the finish line. KTM, once again, rises to the challenge with the latest, limited Six Days edition of extra-tough machines. Easily identified by their special Six Days design, these bikes feature an extended list of top-of-the-line components, all specially designed and refined by KTM’s own research and development department. These are the ultimate Enduro bikes for the exceptional event.
SIX DAYS EQUIPMENT:
Six Days seat for improved long-distance comfort
Exclusive Six Days graphics with a striking design
Handlebar map select switch
Handlebar with Six Days logo
Six Days silencer (anodized and with Six Days logo)
Machined orange anodized triple clamps for extremely precise fork clamping and optimum fork function
Floating front brake disc for consistent braking performance in extreme conditions
Solid rear brake disc (no slots/holes) for improved heat resistance and reduced brake pad wear
Supersprox Stealth 2-component rear sprocket with an aluminum inner ring and steel outer ring for maximum durability
Front axle puller for simple front wheel removal
Engine guard for effective engine protection
Orange chain guide.
The 250cc 2-stroke engine has plenty power and torque, but remains light enough for riders to muscle their way through the toughest obstacles. Thanks to state-of-the-art engineering, innovative 2-stroke design and revolutionary TPI fuel injection technology, the powerplant is even more refined than ever before. The compact and lightweight 2-stroke is a great choice for offroad riders who want usable enduro performance that is ready to conquer in the most extreme terrain. With Euro IV homologation, it’s not only considerately green, but leaves the competition green with envy too.
The KTM 250 EXC TPI cylinder has a bore of 66,4 mm and is fitted with a sophisticated power valve, which provides really smooth and controllable power characteristics. For the EFI application the cylinder features two lateral domes which hold the fuel injectors that supply fuel to the rear transfer ports. The downstream injection guarantees excellent atomization of the fuel with the upstreaming air. Thus, the loss of unburnt fuel is minimal for less emissions, a more efficient combustion and reduced fuel consumption. A little tube in the back of the cylinder is connected with an intake pressure sensor, which supplies pressure data to the control unit. The cylinders feature a state-of-the-art power valve unit with a sophisticated mechanism for the lateral support exhaust ports. The exhaust port layout increases engine performance, while the upper contour of the exhaust port has been machined to ensure more accurate port timing. Last but not least the models allow the use of a more widely available type of traditional spark plug.
CRANKCASES AND ENGINE COVERS
The compact engine cases are manufactured using a high pressure die-cast production process which helps with weight reduction, while retaining strength and durability. The design allows for optimal shaft arrangements close to the center of gravity, resulting in ideal mass centralization and easier ride-ability. Plus, the engine covers feature a smart surface structure which reduces wear caused by the rider’s boots, keeping them looking as fresh as the day you bought your EXC.
The KTM 250 EXC TPI SIX DAYS is fitted with a robust 6-speed transmission made by PANKL Racing Systems. The gears are made of a strong, forged raw material, ensuring the highest durability and reliability level. Another highlight of the 250 EXC TPI SIX DAYS transmission is the no-dirt gear shifter. Similar to the footpeg design, it prevents the build-up of dirt and ensures the next gear is always available, no matter what the conditions.
ENGINE MANAGEMENT SYSTEM
The engine management system (EMS) of the TPI models features a control unit located below the seat. The ECU defines the ignition timing while the amount of fuel to inject is based on several sensor readings such as intake air pressure, throttle position and water temperature plus a new additional ambient air pressure sensor. Thanks to altitude and temperature compensation the rider does not need to worry about fiddling around with the jetting anymore. Should the rider decide to mount a radiator fan from the KTM PowerParts program, it will be controlled directly by the EMS without needing to add an additional thermal switch.
Say goodbye to numb feet and hands. This engine design allows the implementation of a lateral balancer shaft in order to keep the vibrations to a minimum. You know what that means: more comfort, less fatigue, bigger smiles.
The KTM 250 EXC TPI SIX DAYS employs the KTM-developed DDS clutch (damped diaphragm steel) with a wear-free steel basket, extremely heat resistant clutch plates and nitrated steel liners. This clever design employs a diaphragm spring instead of the usual coil springs, making for considerably easier clutch action. A diaphragm spring also leaves sufficient space for a damping system to be integrated into the clutch hub. The goal is traction, but without compromising durability. Light operation and a ‘telepathic’ level of control come standard with this hydraulic Brembo actuated clutch.
Pre-mixing 2-stroke fuel is a thing of the past for KTM EXC TPI owners. The 2-stroke range is fitted with an oil tank featuring flexible mountings, which greatly improve durability and reliability. In addition, a mesh filter helps prevent dirt getting into the oil pump. Mounted below the oil tank, the oil pump delivers the lubricant directly to the throttle body, where it is mixed with the incoming air to lubricate the piston and crankshaft. Using engine speed and throttle position sensor data, the engine management’s precise electronic control of the oil pump ensures that the ideal amount of oil for any given conditions is used. The filler cap assembly for the oil tank is located between the fuel tank and steering head, utilizing a hose in the upper frame tube to transfer the oil to the storage container. With an average fuel-to-oil ratio of 1:80, the oil capacity of about 0.7 liters is sufficient for at least five tanks of fuel.
The TPI engine is fitted with a 39 mm throttle body made by Dell`Orto. The airflow is regulated by a butterfly connected with a twin-cable throttle cam, which is operated by the handlebar throttle assembly. A throttle position sensor provides airflow data to the control unit. The idle system allows the idle speed to be set more precisely via the bypass screw. Also, the cold start system provides a better supply of extra air when opening a bypass. Oil supplied by the electronically controlled oil pump via an oil intake tube is mixed with the incoming air to lubricate the moving engine parts.
To accommodate the power requirements of the engine management system, the TPI models are fitted with a powerful 196 W alternator and a voltage regulator. The same as can be found on the EXC-F 4-stroke models.
Maintaining the optimal engine temperature is crucial to ensuring consistent horsepower throughout the ride. The KTM 250 EXC TPI SIX DAYS features radiators which are mounted close to the center of gravity and match the design of the shrouds perfectly, in order to achieve perfect ergonomics. By using CFD technology (computational fluid dynamics) together with a clever coolant circuit routing, the innovative system ensures the optimum engine temperature for the highest performance, no matter what the conditions. Above all, the delta distributor, integrated into the frame triangle, features a large center tube, making the coolant flow from the cylinder head to the radiators highly efficient. The radiators also feature special protectors that don’t only serve as protection from flying rocks and debris but also as a brace that disperses energy around the radiators in the event of an impact.
When it comes to power delivery and performance, the exhaust plays a key role and packs a punch that is hard to beat. The 250 cc and 300 cc models feature HD exhaust pipes (heavy-duty) made by using an innovative 3D stamping process which produces a ribbed surface finish. This makes the pipe much stronger, with better resistance against rocks, while also helping to reduce noise drastically. The silencer features a compact shape and end cap with internal designs individually developed for each model, while it is mounted using an aluminum mounting bracket. In addition, the exhaust’s shape provides slim ergonomics and more ground clearance, while a perforated inner silencer tube works with lighter damping material for efficient and durable noise reduction. The silencer on this model also displays the SIX DAYS logo for further distinction from the crowd.
The KTM 250 EXC TPI SIX DAYS features an orange, high-tech, lightweight chromoly steel frame. This includes hydro-formed elements produced by state-of-the-art robot welding. With its race-proven geometries and optimal stiffness, the frame provides great feedback for the rider, playful handling and remarkable stability. The laterally attached engine head stays (the connection between cylinder, head and frame) are made of aluminum, reducing vibration and further contributing to precise cornering. The bikes also feature lateral frame guards with a structured surface, improving grip, while also serving as a heat protector against the muffler on the right side. The subframe is made of extra-light and stable aluminum profiles, weighing less than 900 gr , providing great rear fender stability.
The KTM 250 EXC TPI’s one-piece aluminum swingarm is manufactured using a gravity die-cast production process, offering exceptional strength at the lowest possible weight. The single-component casting process offers low weight, perfect flex behavior and also allows for a large number of geometry solutions.
KTM uses lightweight, CNC-machined hubs and high-end GIANT black anodized rims on all Enduro models, guaranteeing maximum stability and minimum weight. The aluminum spoke nipples feature an innovative design, which conveniently reduces the frequency with which the spokes need to be tightened. A SIX DAYS logo features on the rims and Metzeler EXTREME is the tire of choice for this high-end enduro weapon.
All EXC SIX DAYS models are fitted with the latest 48 mm diameter WP XPLOR upside-down forks with preload adjusters, featuring a split fork design developed by WP and KTM. While each side is fitted with springs, they have separate damping functions. Compression damping is on the left and the rebound on the right. Both can be easily adjusted via the dials on top of both fork tubes with 30 clicks each. Although already distinguished for outstanding response and damping characteristics, the fork features a calibrated mid-valve piston for consistent damping. The settings keep the front end higher in the stroke, providing impressive reserves against bottoming out.
The WP XPLOR shock absorber is the key element on the proven PDS rear suspension design (progressive damping system), where the shock is directly linked to the swingarm without an additional linkage system. This keeps weight lower and reduces the chances of hooking on rocks. Optimal enduro-specific damping progression is achieved by using a second damping piston in combination with a closed cup towards the end of the stroke, and supported by a progressive shock spring. The settings on the XPLOR PDS shock provide impressive better damping characteristics and match the frames and front-end set-up perfectly. It is fully adjustable, including high and low-speed compression, so you can set the shock up to suit any track, trail and rider preferences.
All Six Days models are fitted with high-end CNC machined triple clamps anodized in orange and an offset of 22mm, ensuring a solid grip of the fork and precise handling. The handlebar is adjustable forwards and backwards over 4 positions, so the bike will fit you like your favorite gloves.
These high-tech Brembo brakes are combined with lightweight Wave brake discs (Solid rear and floating front). You couldn’t brake any harder or with better feel on an offroad motorcycle. For additional strength and reliability, the rear brake pedal is secured with a safety wire.
All models in the EXC range are fitted with lightweight polyethylene tanks improving the ergonomics. The ¼-turn bayonet filler cap makes for quick and easy closure. Manufactured using see-through plastic, you will always be able to see how much fuel remains at a glance. It is fitted with an integrated fuel pump system and a fuel level sensor. Additionally, the fuel line features a 90° connector to the tank for better protection against damage.
The airbox on the KTM 250 EXC TPI SIX DAYS ensures optimal flow dynamics, and together with the new intake snorkels, results in optimal power and throttle response. Despite the obvious performance enhancements, the design also offers maximum protection against soiling of the air filter. The large Twin-Air air filter is mounted on a cleverly designed stiff cage that minimizes incorrect installation. As found on previous models, filter maintenance is quick and easy and does not require tools – a standard, original feature from KTM.
All SIX DAYS models are equipped with the same high-strength aluminum tapered handlebar, that can be mounted in four different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any wire or glue, on the left. Just in case you needed reminding that you were on a special machine, the handlebars feature the SIXDAYS logo.
If you’re going to ride for six days, you may as well have the special SIX DAYS SEAT. All the foam technology seen on the other EXC models, but with a unique SIX DAYS cover featuring additional stripes for better grip and comfort.
Sophisticated ‘No-Dirt’ footpegs prevent clogging up the pegs, even when digging in deep ruts. The pegs on the Enduro models are 6mm higher than the ones used on SX models, which benefits ground clearance. But you can swap them at will.
